Simple Digital Sine Wave Generator (CB24475E)

Details
Written by: Newton C. Braga

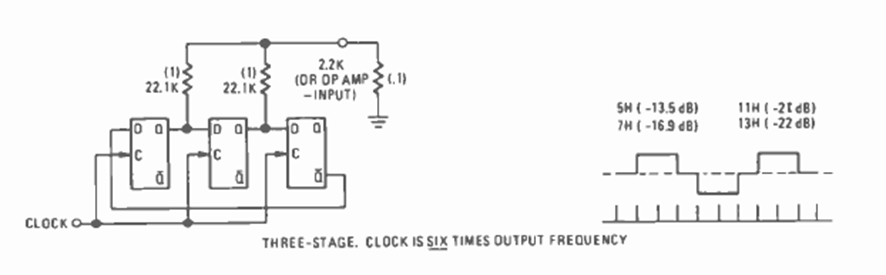

This 3-step circuit for generating digital signals was found in the November 1976 issue of Radio Electronics magazine. The maximum frequency depends on the flip flops.
