AC Switch for Isolated Triac (CB25076E)

Details
Written by: Newton C. Braga

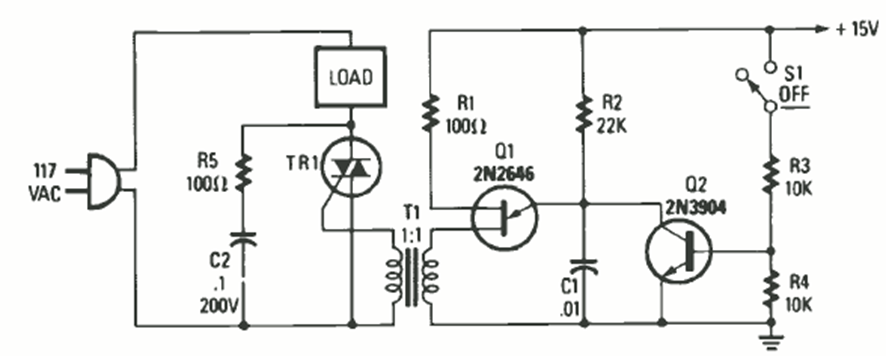

We found this circuit in the October 1987 Radio Electronics magazine. The circuit uses a 1-to-1 turns ratio pulse transformer to trigger the Triac.
