Touch Switch (CB26207E)

Details
Written by: Newton C. Braga

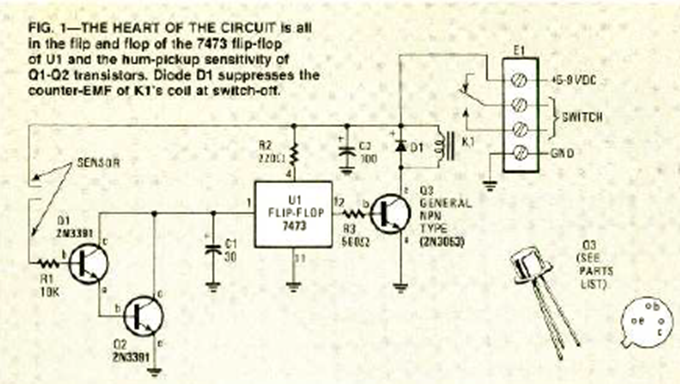

We found this circuit in the 1983 Radio Electronics Special projects magazine. The components are common, and the circuit drives a relay. The power supply must be isolated.






| Clique na imagem para ampliar |
