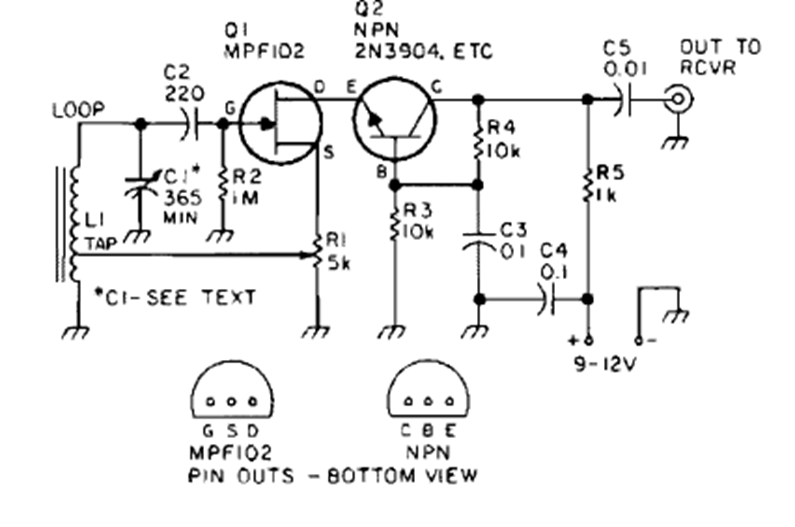

Loop Antenna Tuner (CB26263E)

Details
Written by: Newton C. Braga



This circuit appeared in Amateur Radio Today in an issue and was found in a 1995 issue. The circuit is for the AM band up to 3 MHz. The transistors are general-purpose.
