Sinusoidal generator 4018 (CB24474E)

Details
Written by: Newton C. Braga

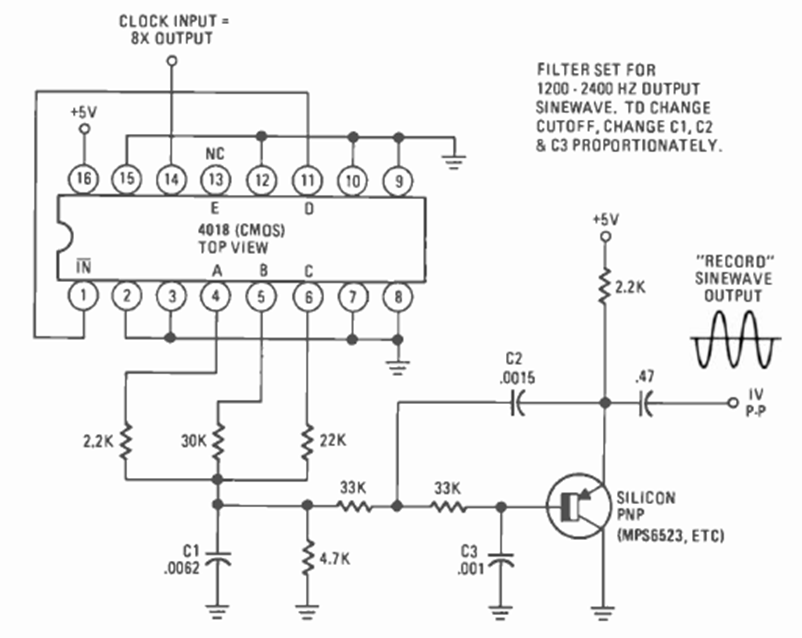

The figure shows how to generate a sinusoidal signal using a CMOS integrated circuit. The circuit is from a Radio Electronics from November 1976. The frequency depends on the capacitors.
