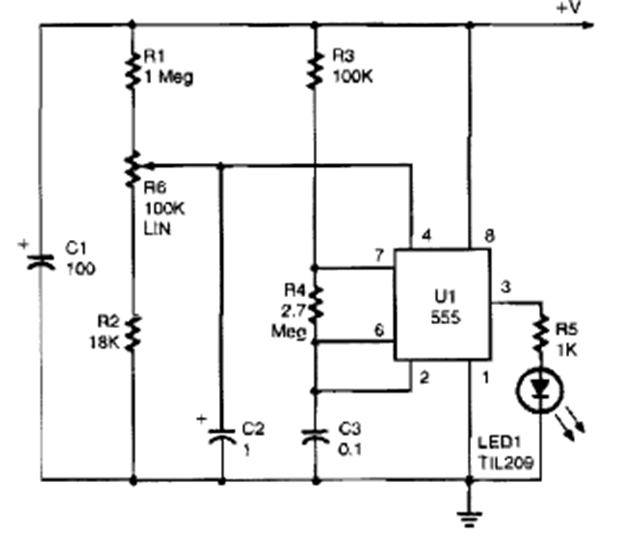

This circuit was found in a Popular Electronics from the 90s. The circuit with the 555 monitors the output voltage of a power supply, adjusted by a potentiometer.
Power Supply Monitor (CB26307E)
- Details
- Written by: Newton C. Braga
This circuit was found in a Popular Electronics from the 90s. The circuit with the 555 monitors the output voltage of a power supply, adjusted by a potentiometer.
