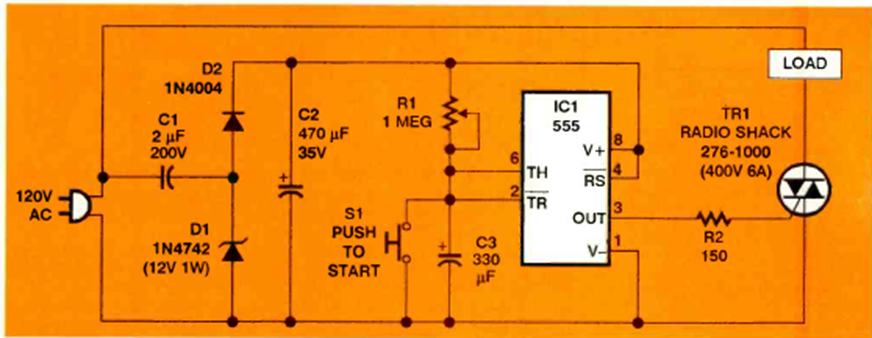

We found this circuit in the January 1997 Electronics Now magazine. The triac determines the maximum controlled power. The time is set by R1. It is recommended to connect a 10k resistor in series with the potentiometer.
