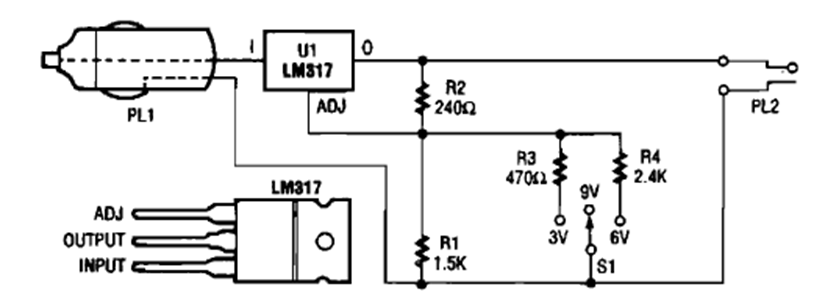

This circuit can be used to power 6, 9 or 12 V devices in your car. The maximum current is 1.5 A. The circuit is from a 1983 Electronics Hobbyist Handbook.
