Solar Charger (CB26304E)

Details
Written by: Newton C. Braga

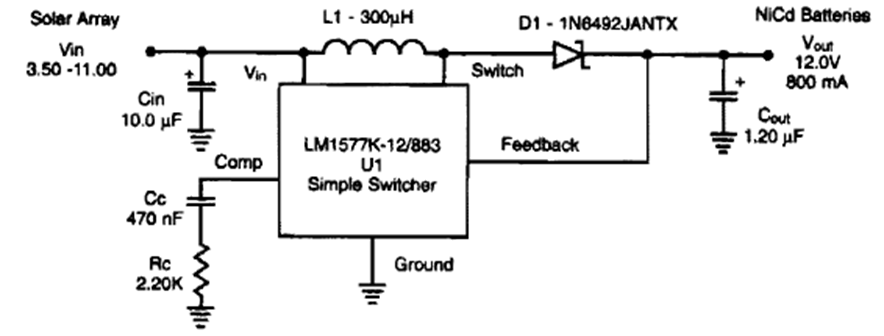

This battery circuit provides a charging current of 500 mA depending on the solar panel. The switching circuit is from a National Semiconductor documentation from the 90s.
