Spark Generator (CB26136E)

Details
Written by: Newton C. Braga

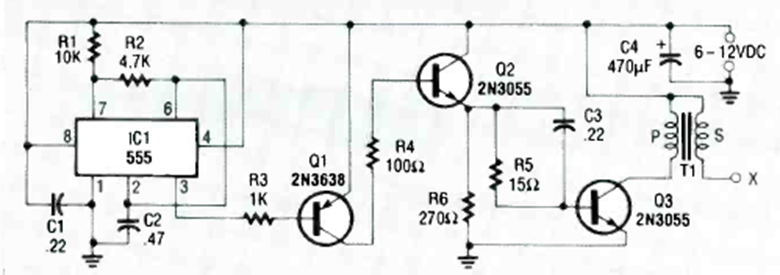

This circuit has the spark duration controlled by a 555 timer. The circuit was found in the 1990 special issue of Radio Electronics Experimenter magazine.
