Digital Fuel Gauge (CB26173E)

Details
Written by: Newton C. Braga

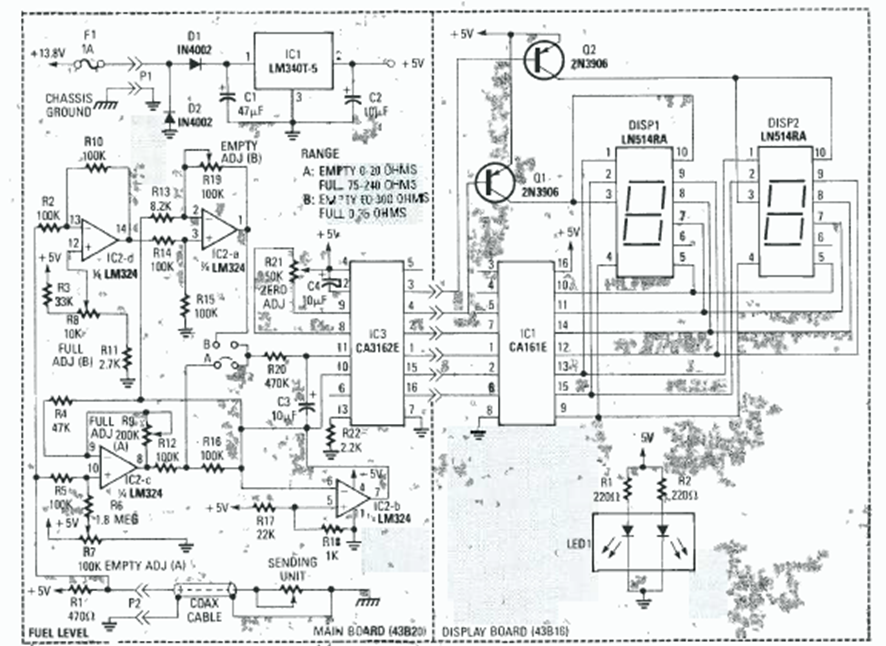

This two-digit circuit was found in the 1999 Radio Experimenter Handbook. It uses the CA3161 and CA3162 A/D converter pair common at the time.
