Positive Ground Cars immobilizer and Alarm (CB24468E)

Details
Written by: Newton C. Braga

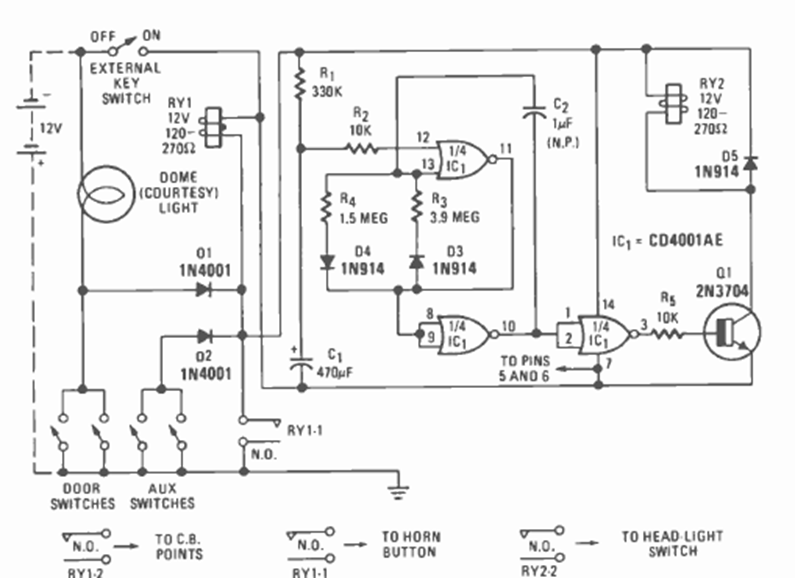

This is the version of the previous circuit for vehicles with positive ground. The circuit is from a Radio Electronics from December 1976. A siren is included.
