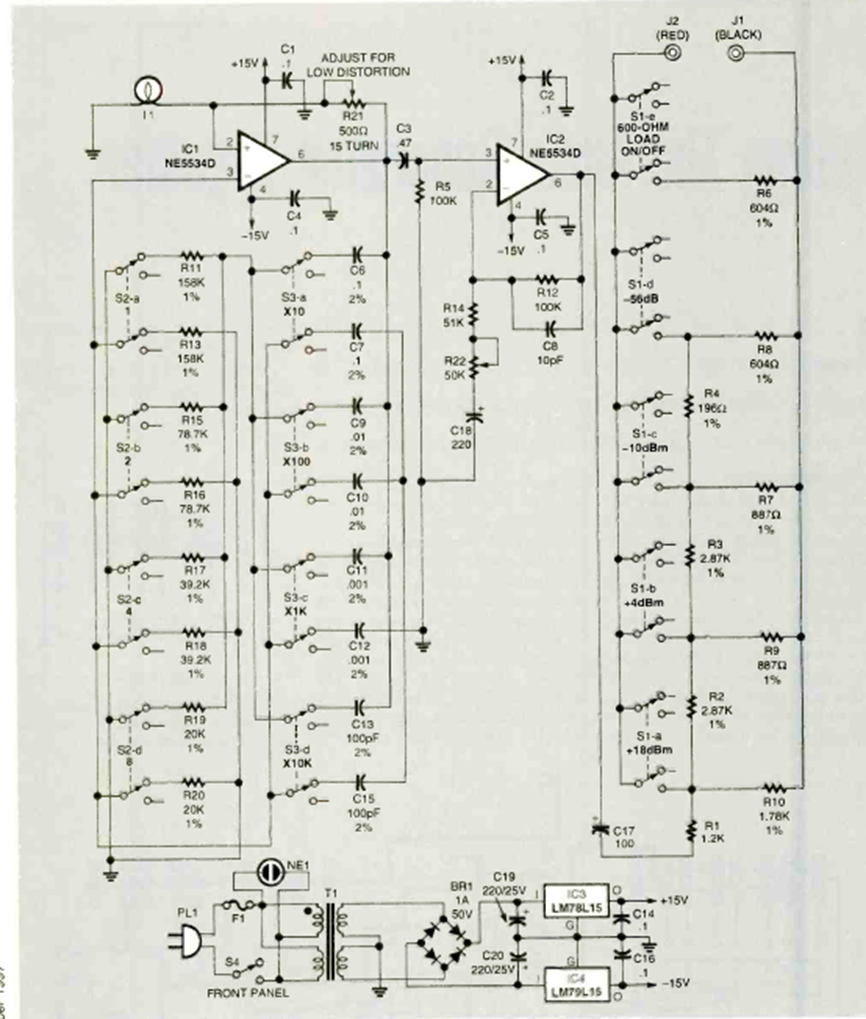

This circuit was found in the September 1997 issue of Electronics Now magazine. The circuit uses two op-amps and includes the symmetrical power supply.
| Clique na imagem para ampliar |
Audio Generator (CB26025E)
- Details
- Written by: Newton C. Braga
