Battery Charge Indicator (CB26002E)

Details
Written by: Newton C. Braga

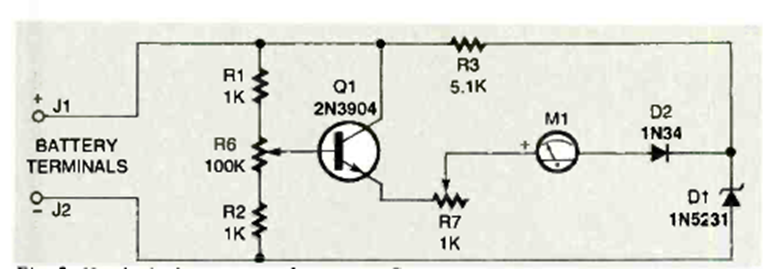

This circuit was found in the March 1997 Electronics Now magazine. It uses a common analog indicator and the transistor is a general purpose one.
