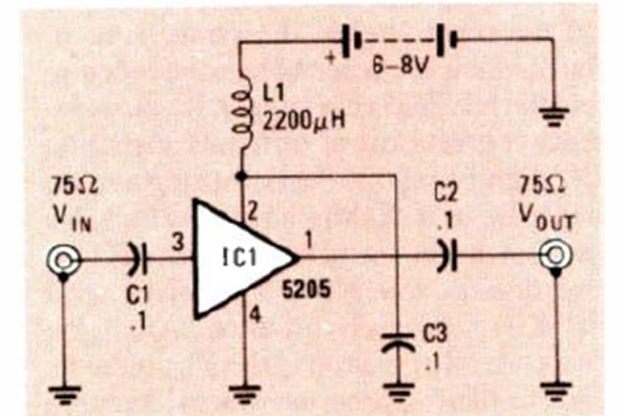

With a gain of 20 dB, the circuit presented can amplify signals up to 450MHz. The integrated circuit used, NE5205, is from the period. The circuit is from the Radio Electronics magazine of May 1987.
Broadband Amplifier (CB25032E)
- Details
- Written by: Newton C. Braga
