Dual Timer up to 14 hours (CB24463E)

Details
Written by: Newton C. Braga

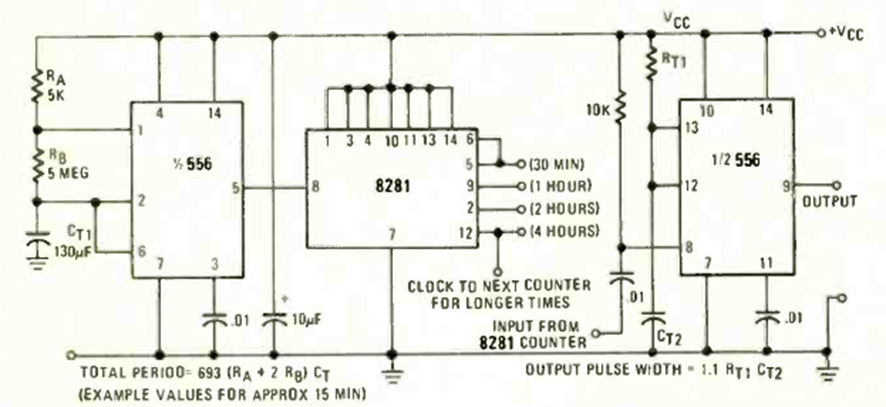

This long interval timer was found in the September 1976 issue of Radio Electronics magazine. The output can be used to control a relay. The circuit achieves timings of up to 14 hours.
