Circuit for the 7107 (CB25984E)

Details
Written by: Newton C. Braga

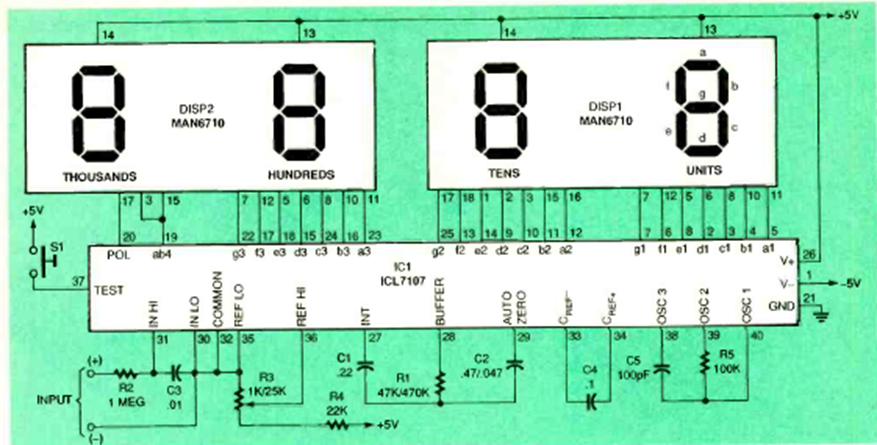

In the figure we have the basic way of using the 3-and-a-half-digit counter 7107. The circuit is from an Electronics Now from November 1996. It uses two dual displays.
