Headphone Amplifier (CB26277E)

Details
Written by: Newton C. Braga

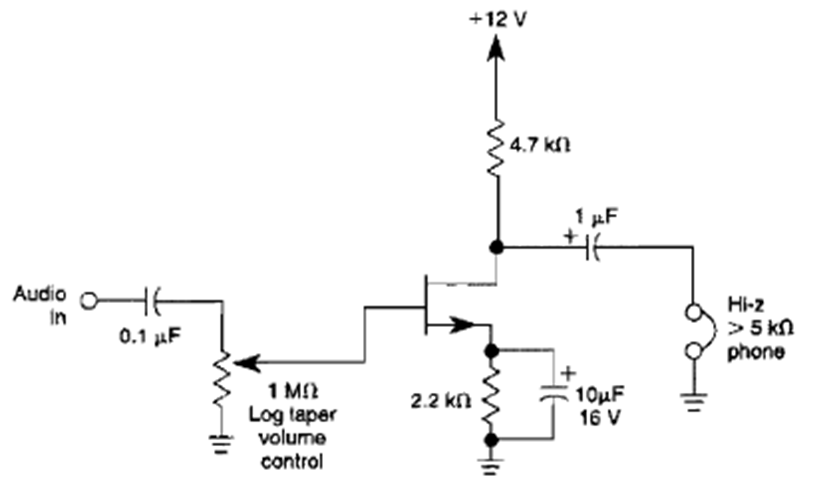

This high-impedance headphone circuit was found in a 1990s William Sheets. The power is low, but the high input impedance makes it useful for radio applications.
