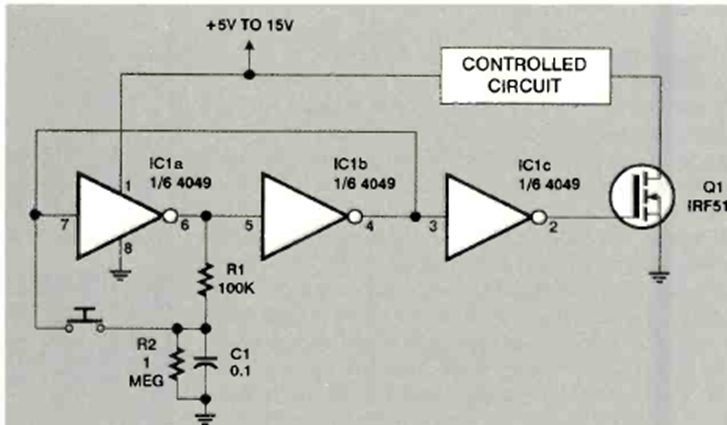

This circuit was found in the January 1999 issue of Electronics Now magazine. The turn-on time is given by the capacitor and MOSFET and must be in accordance with the controlled load.
| Clique na imagem para ampliar |
CMOS Timer (CB26084E)
