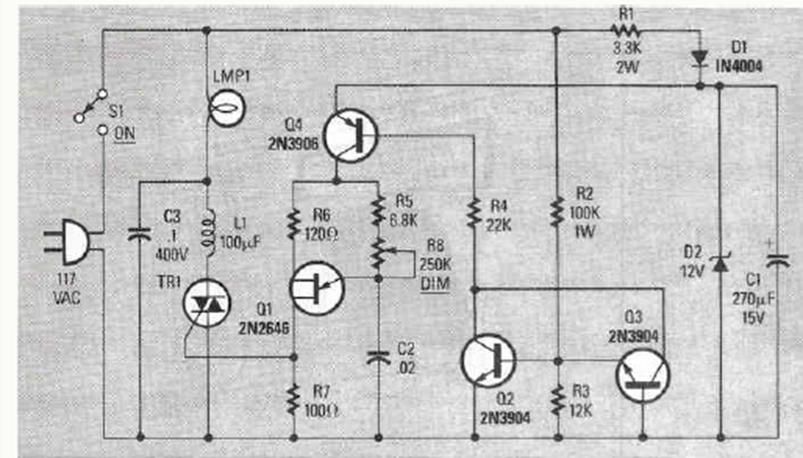

Found in the 1989 Radio Electronics Experimenter magazine, this circuit uses several transistors, one of which is a unijunction transistor. The triac must be in accordance with the lamp, which must be incandescent.
| Clique na imagem para ampliar |
Dimmer with UJT and Triac (CB26131E)
- Details
- Written by: Newton C. Braga
