Although it is made for old oscilloscopes up to a few megahertz, this circuit converts your device from 1 trace to a 4-trace device. The circuit is from the Electronics Experimenter Handbook magazine from 1980.
| Clique na imagem para ampliar |

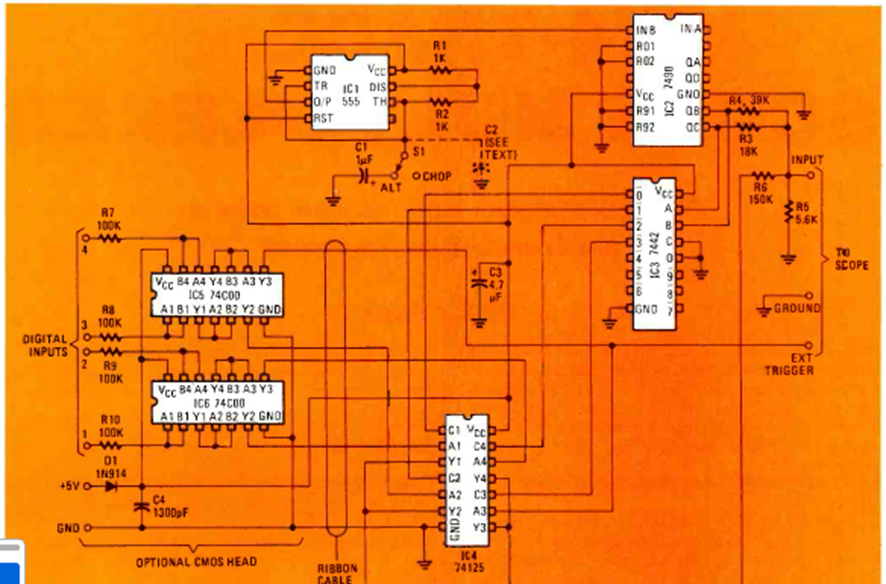

Multiplexer for oscilloscope (CB26217E)
- Details
- Written by: Newton C. Braga
