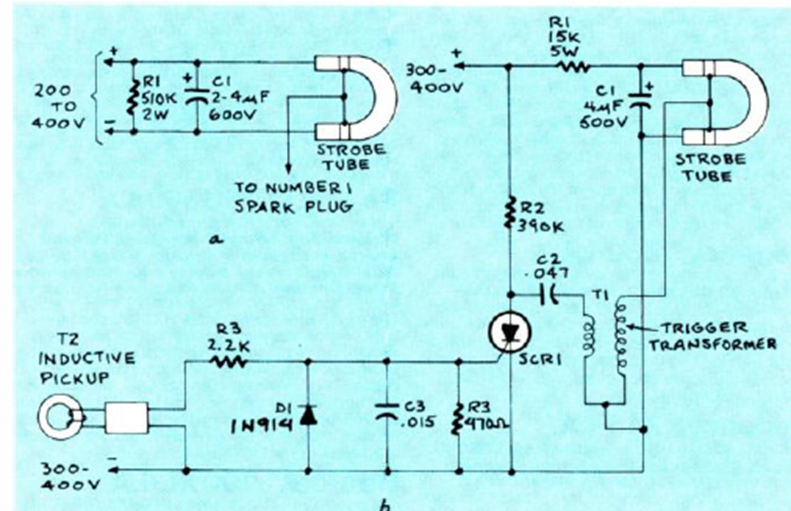

Xenon Flasher (CB25030E)

Found in Radio Electronics magazine, May 1987. It triggers a xenon lamp from an inductive sensor. The circuit requires 200 to 400 V DC to operate.

| Clique na imagem para ampliar |
