555 Linear Ramp Generator (CB24462E)
- Details
- Written by: Newton C. Braga

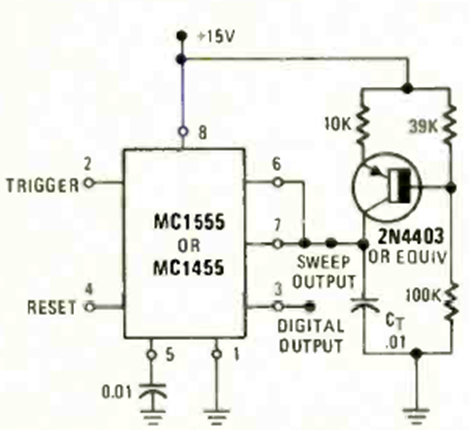

We have other similar setups on this site. This one is from September 1976 Radio Electronics. The circuit uses a constant current source to charge the timing capacitor.
