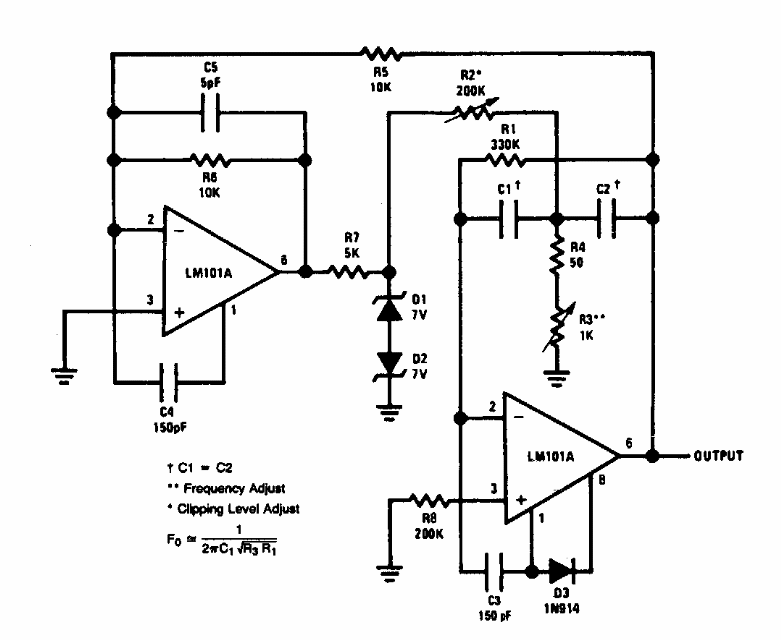

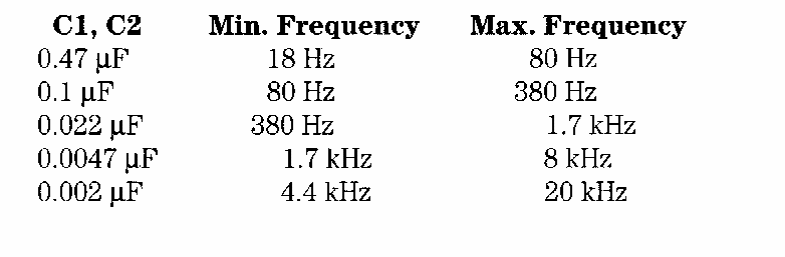

Found in National Semiconductor documentation from the 1980s, this circuit can be implemented with more modern operationals. The formula for frequency is given next to the diagram.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
