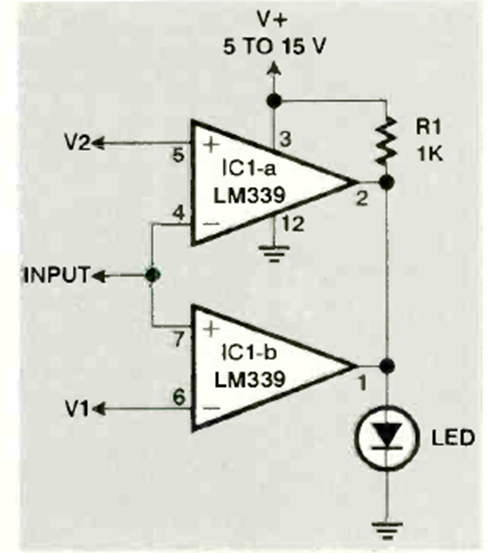

This simple window comparator based on the well-known LM339 was found in the June 1998 issue of Electronics Now magazine. The circuit uses two external voltage references to determine the window.
Window Comparator (CB26066E)
- Details
- Written by: Newton C. Braga
