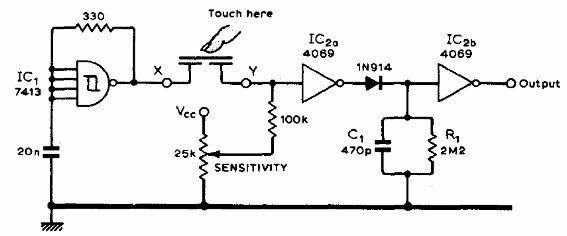

This configuration was found in a 1970s American magazine. The circuit uses both CMOS logic and TTL logic. Oscillator switches the circuit to around 100 kHz. The signal passes to the logic function when the sensor element is touched. The circuit can be used as a shield for microcontrollers.
