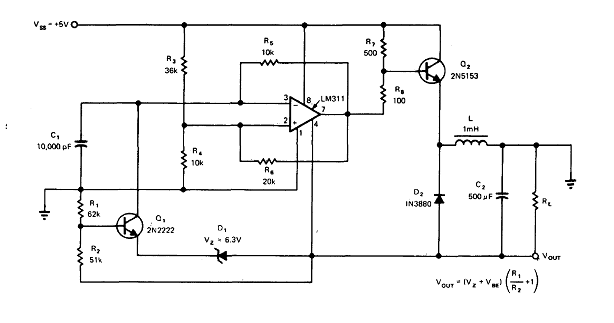

We find this circuit in an old technical documentation. The circuit can be drawn up with other operational amplifiers and the transistor can be a BD135 for currents up to 500 mA. The output voltage can be changed by using the formula next to the diagram.
