Quadrature Generator for Transistor and SCR Testing

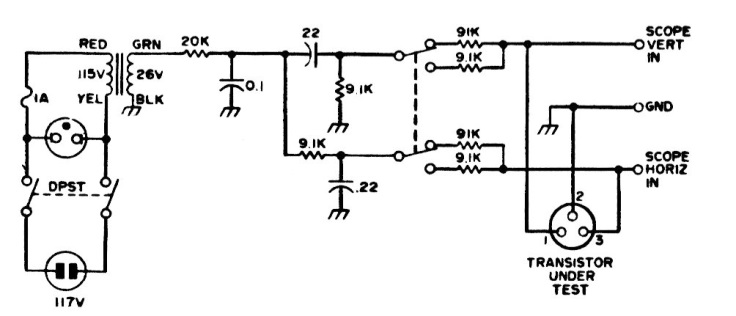

This circuit was found in US 1980s documentation. It is intended for the testing of transistors and SCRs generating quadrature signals for visualization of characteristics on an oscilloscope.
