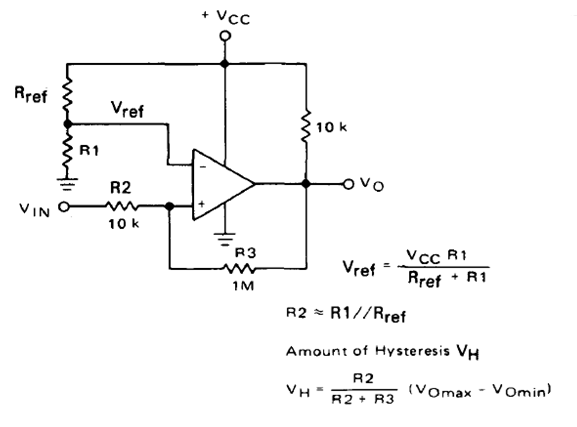

This circuit, from the 1990 Motorola Dataar Databook, can use any LM139 series comparator. The circuit must be powered by a symmetrical power source and the formula for component calculations is next to the diagram.
