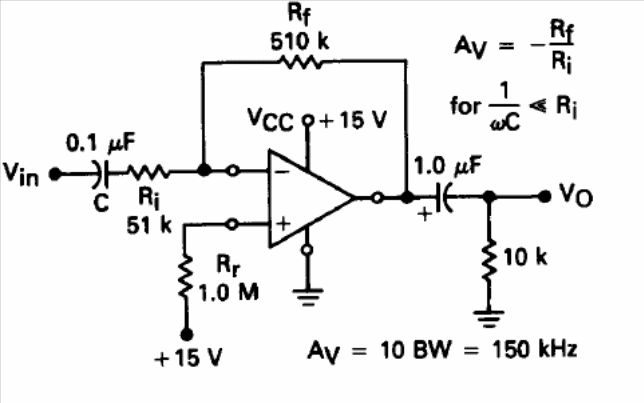

LM3900 Inverter Amplifier (CB4028E)

Details
Written by: Newton C. Braga



    This setting is valid for other transconductance operational amplifiers. The circuit is from Motorola's 1990 Linear Databook. The power supply must be symmetrical.
