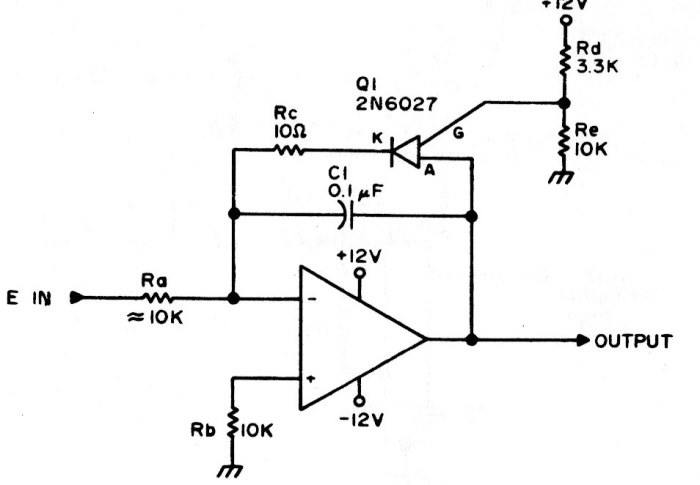

This VCO with a common operational amplifier was found in an old American documentation. The operational may be 741 and the PUT (Unijunction Programmable Transistor) is not a common component today.
| Clique na imagem para ampliar |
This VCO with a common operational amplifier was found in an old American documentation. The operational may be 741 and the PUT (Unijunction Programmable Transistor) is not a common component today.
