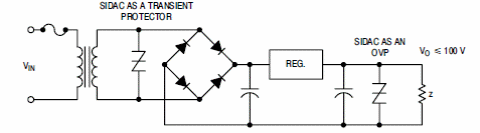

The circuit presented was found in the ON Semiconductor manual. In it we have a way to protect the output of a power source using a SIDAC and also the regulator input in the secondary of the transformer. In the first case we have protection against transients and in the second against overvoltage.
