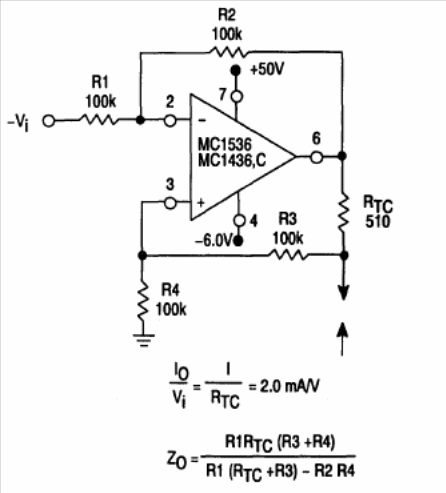

Voltage Controlled Current Source MC1536 (CB4496E)

Details: Written by: Newton C. Braga

This circuit was suggested by Motorola's 1993 Linear Interface ICs. Equivalent operational amplifiers can be used. The circuit has symmetrical power of 50 + 6 V.
