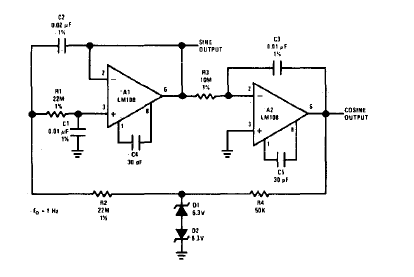

Sine Oscillator (CB4926E)

Details: Written by: Newton C. Braga

This setting appears elsewhere on this site. This was obtained from an 80's Circuit Encyclopedia and uses operational ones of the time. The power supply must be symmetrical. The signal is 1 kHz.
