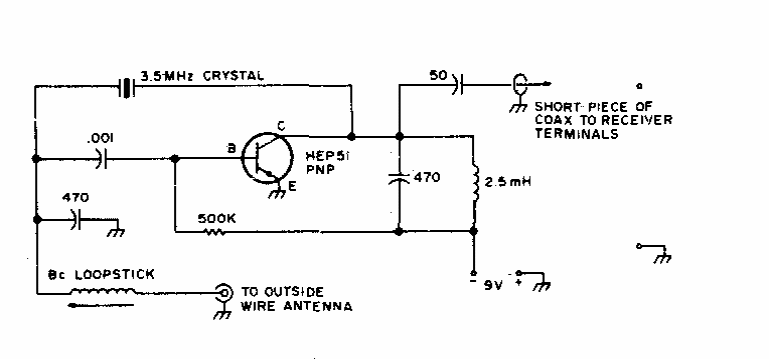

Simple long wave converter (CB5931E)

Details
Written by: Newton C. Braga



     This converter converts a signal in the 200 kHz to 3.8 MHz band into frequency signals that can be tuned on a 3.5 MHz receiver. Coil data not provided.
