Dosimeter (CB5922E)

Details
Written by: Newton C. Braga

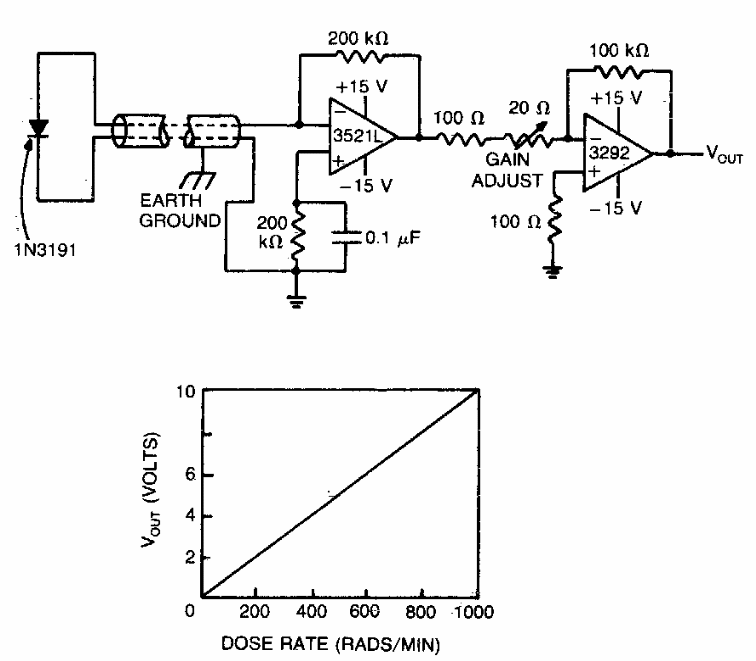

    This circuit uses a diode as a radiation sensor. The operational ones are old because the publication is from the 80's, but modern low voltage equivalents can be tested.
