VCO triggered by a 4011 inverter (CB25759E)

Details
Written by: Newton C. Braga

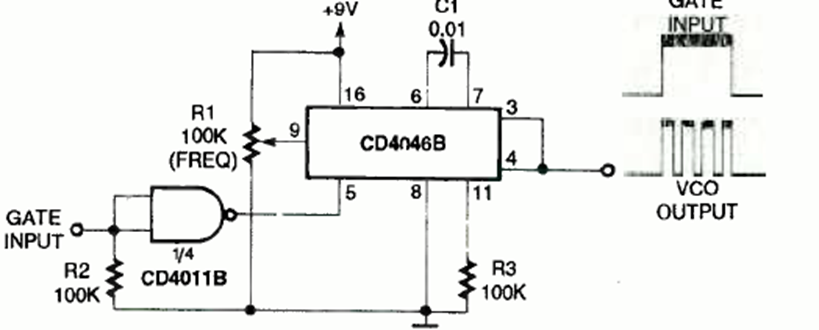

We found this circuit in the August 1994 issue of Electronics Now magazine. The circuit is based on the now uncommon CMOS 4046. The frequency range is given by C1.




| Clique na imagem para ampliar |
