Millivolt Meter LM356 (CB25227E)

Details
Written by: Newton C. Braga

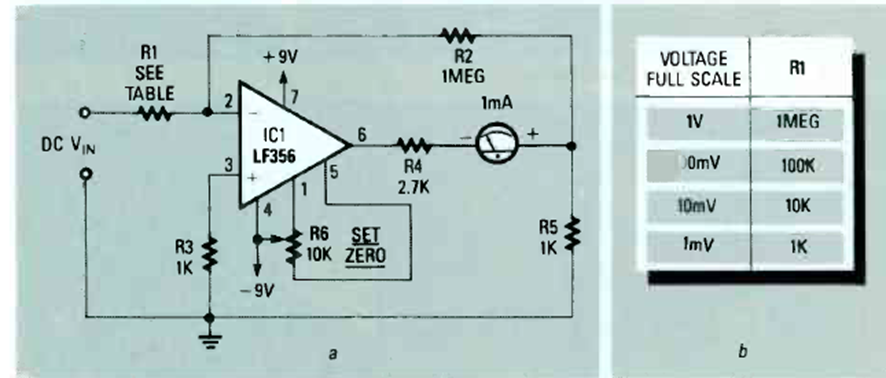

This analog meter circuit was found in the September 1989 issue of Radio Electronics magazine. The source must be dual, and the table gives the resistors for the various scales.




| Clique na imagem para ampliar |
