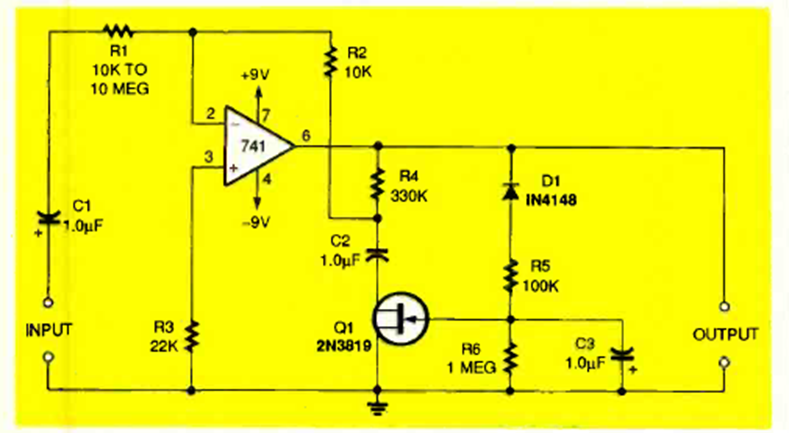

This circuit was found in the March 1995 issue of Electronics Now magazine. The circuit requires a symmetrical power supply, and the FET is a common general-purpose type.
| Clique na imagem para ampliar |
741 Constant Volume Amplifier (CB25832E)
- Details
- Written by: Newton C. Braga
