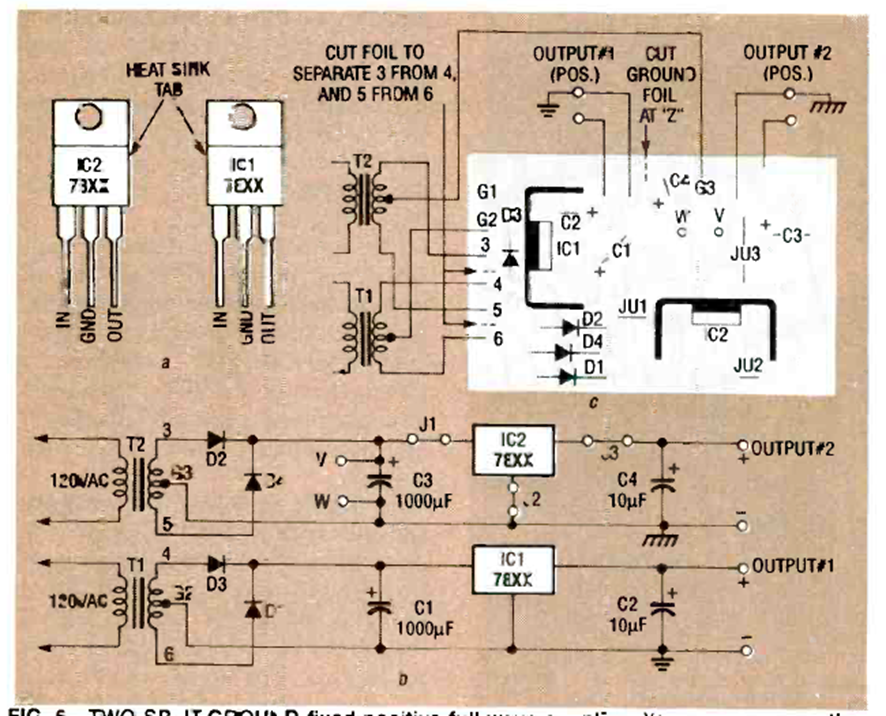

Two conventional 78xx power supplies (CB25958E)

Details
Written by: Newton C. Braga



This circuit appeared in the June 1990 issue of Radio Electronics magazine. Integrated circuits must be equipped with heatsinks. Current and voltage depend on the ICs used.
