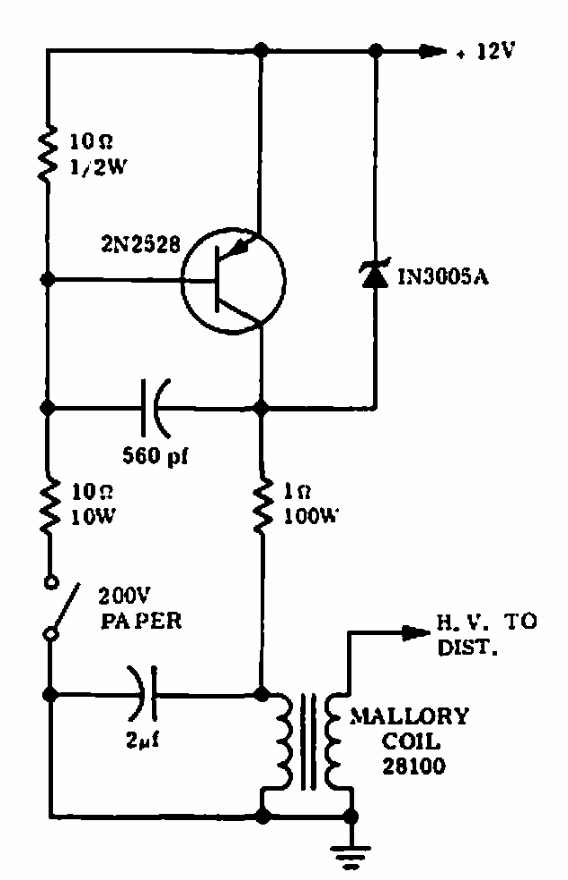

This circuit for old platinum cars was found in a 1967 Motorola documentation. The power transistor is of the era. The zener is protective.
One transistor ignition (CB6388E)
- Details
- Written by: Newton C. Braga
This circuit for old platinum cars was found in a 1967 Motorola documentation. The power transistor is of the era. The zener is protective.
