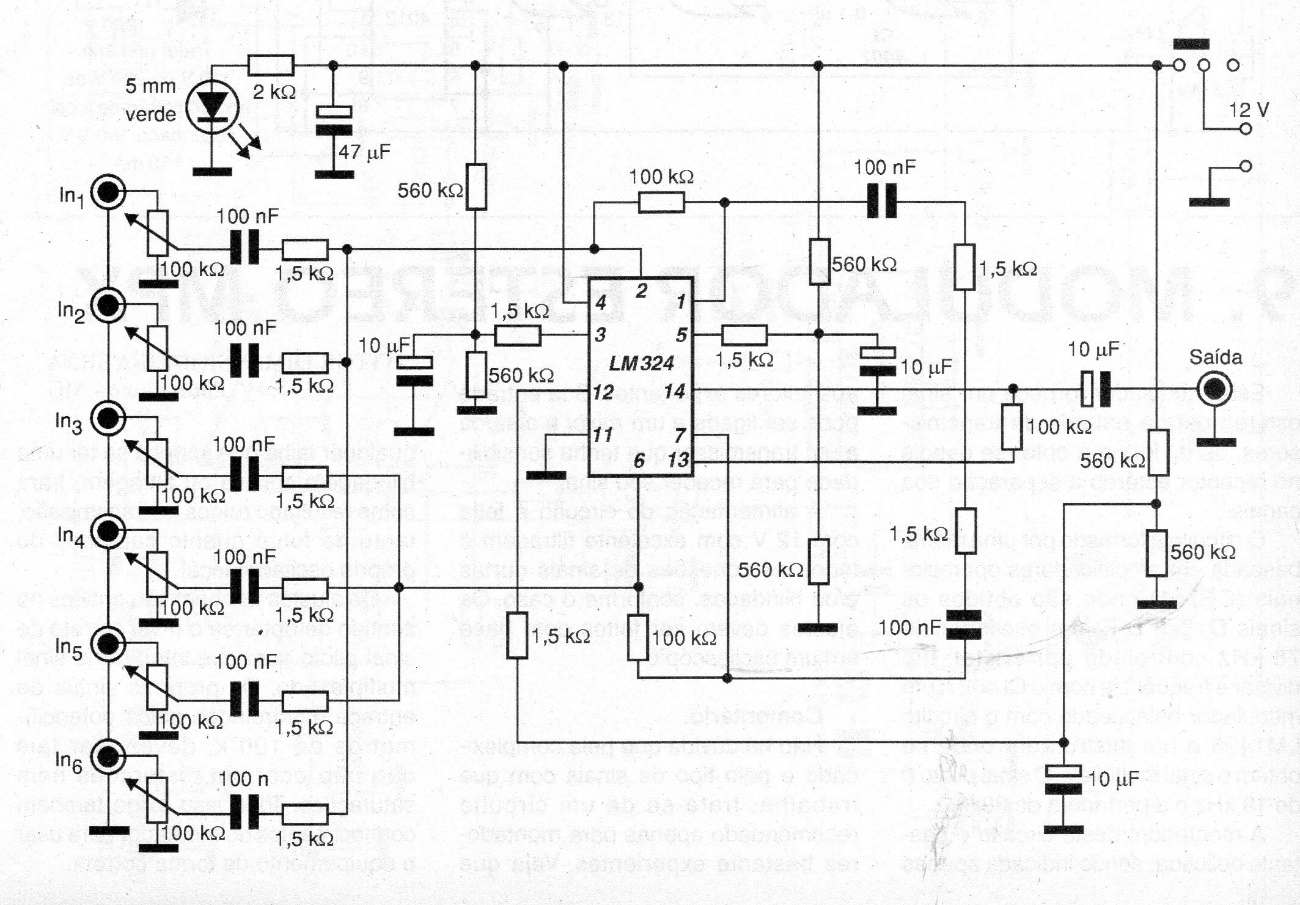

This 6-input mixer circuit is from 2004 documentation. The power source must have excellent filtering and the signal cables must be shielded. The operational amplifier used admits equivalent and for a stereo version two similar channels with a single power supply must be installed.
| Clique na imagem para ampliar |
