Headphone amplifier (CB7100E)

Details
Written by: Newton C. Braga

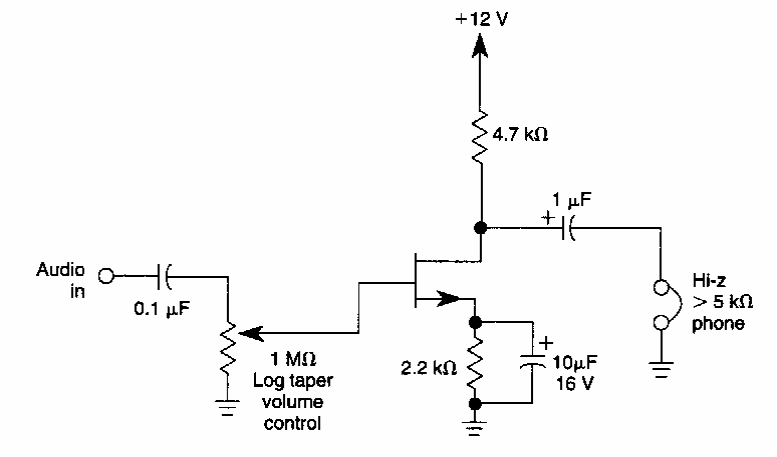

     This high impedance headphone amplifier was found in American documentation from the 1990s. Any general-purpose FET can be used.
