Inductor simulator (CB6226E)
- Details
- Written by: Newton C. Braga

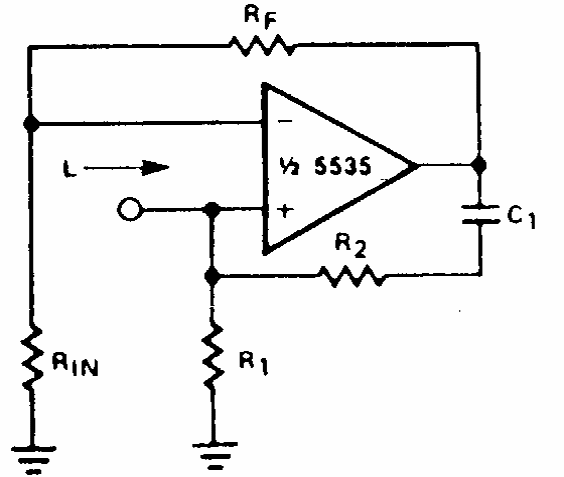

This circuit was suggested by Signetics in a 1980s documentation. The operational is old, but the setting is true for any operational. The inductance is given by L = R1R2C.
