Potentiometer Position Indicator (CB6694E)

Details
Written by: Newton C. Braga

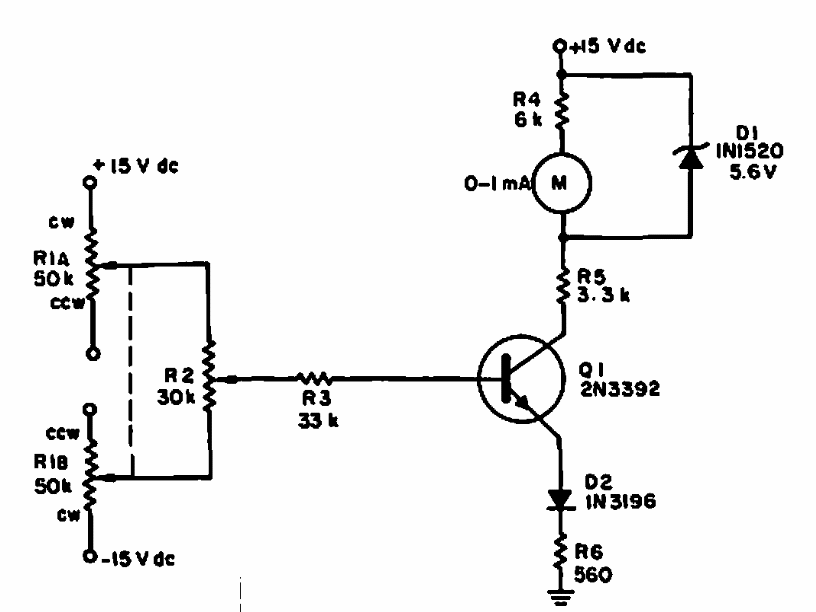

     Found in an old publication, this circuit uses an analog milliammeter to indicate the position of a potentiometer. The potentiometer can be used as a sensor and the transistor can be any general purpose.




| Clique na imagem para ampliar |
