Divide-by-8 TTL (CB238E)

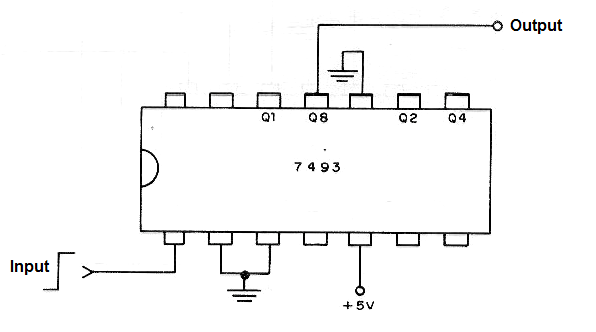

This circuit uses the 7493 to divide a TTL square signal by 8. The circuit must be powered from a 5 V power supply. The maximum input frequency depends on the IC family. Standard TTL can accept signals up to 10 MHz.
