Single AC DC Voltmeter (CB3803E)

Details: Written by: Newton C. Braga

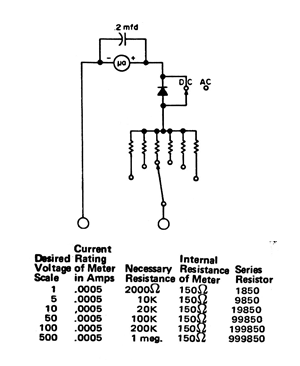

We found this circuit in an old American documentation. The table gives the values of the components for the various voltage ranges. The diode must be germanium for less direct voltage drop.
