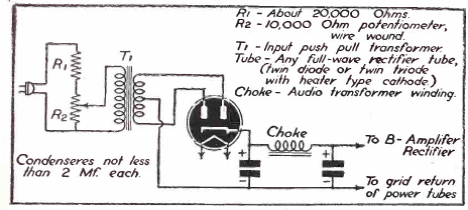

In the figure we have an improvised bias circuit with a common transformer. The circuit has a variable voltage adjustment made by the potentiometer, remembering that this component and the resistor are types of power. The circuit is from a 1942 documentation. The tube can be any type of full wave and must have a transformer to feed its filament.
