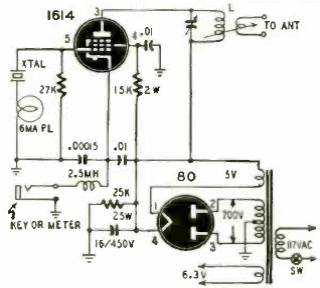

This small transmitter for the 40 and 80 meters band was found in a Radio Craft from September 1948. The adjustment current must be between 80 and 90 mA. The power is on the order of 20 W.
1-tube Transmitter (T1327E)
- Details
- Written by: Newton C. Braga
