Square signal generator (T1688E)

Details
Written by: Newton C. Braga

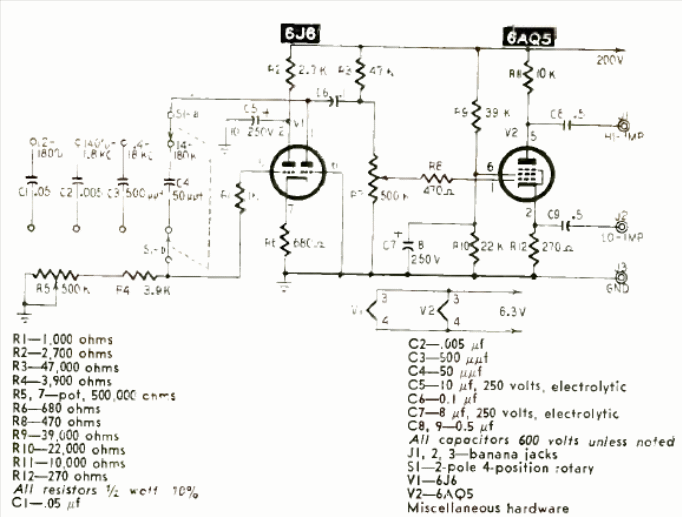

This bench circuit was found in Radio Electronics magazine from June 1958. The circuit does not have an external power supply. The circuit generates signals from 12 Hz to 180 kHz in 4 bands.




| Clique na imagem para ampliar |
